bearing

Bearings

  • Ball
    bearings
  • Roller bearings
  • Miniature ball bearings
  • Needle roller bearings
  • Overseas-made bearings
  • Automotive bearings
  • Bearing units (e.g., pillow blocks)
  • Custom-made special bearings
  • Others
  • Direct-drive applications
  • Swing bearings

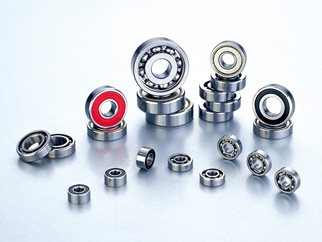

1）Ball bearings

Ball bearings Description Brand
ball bearing Bearings of several types including those of automatic centering type as well as bearings of the most common deep groove type are available. FAG、 JAF、KOYO、KSK、KSM、MBS、MRK、NACHI、NSK、NTN、WTW、etc

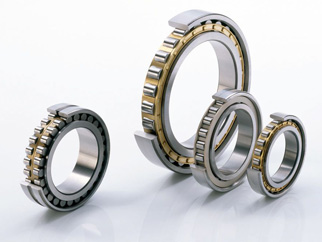

2）Roller bearings

Roller bearings Description Brand
roller bearing Rollers of various types (e.g., those of conical, cylindrical, and spherical types) are available and selectable according to each purpose. FAG、KOYO、NACHI、NSK、NTN、etc

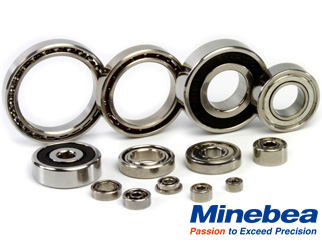

3）Miniature ball bearings

Miniature ball bearings Description Brand
Miniature ball bearings Miniature ball bearings are 1 mm to less than 10 mm in inner diameter and provided with a wide range of features, such as compactness, lightweight, high-speed performance, and low vibration. EZO、ISC、KOYO、NMB、NSK、NTN、etc

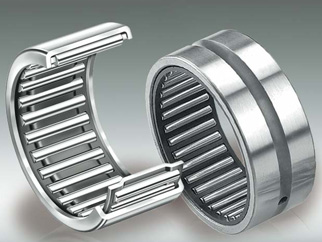

4）Needle roller bearings

Needle roller bearings Description Brand
Needle roller bearings Needle roller bearings, which are categorized into roller bearings, satisfy the requirements of compactness, lightweight, automation applications, resource-saving purposes, and maintenance-free performance. Needle roller bearings are used for a wide range of applications, including automobiles, motorcycles, machine tools, and construction equipment. INA、KOYO、NSK、NTN、etc

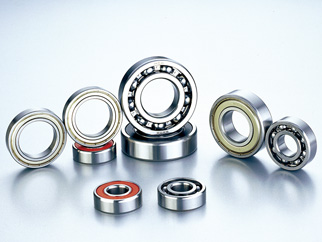

5）Overseas-made bearings

Overseas-made bearings Description Brand
海外製ベアリング Not only bearings for general industrial use but also those for automotive use are available in a wide range from inexpensive ones to high-grade bearings. INA (German made), KBC (Korean made), Chinese made, etc. FAG、 HCH(Chinese made)、INA、KBC(Korean made)、etc

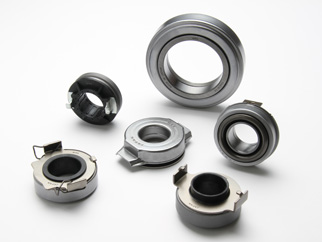

6）Automotive bearings

Automotive bearings Description Brand
自動車ベアリング Special products in a wide variety are available (e.g., bearings for clutch release, steering, wheel, and tensioner applications), which are different from those for general industrial use. We have a system to support all types of customer needs. FBJ、KOYO、MRK、MBS、NACHI、NSK、NTN、etc

7）Bearing units (e.g., pillow blocks)

Bearing units (e.g., pillow blocks) Description Brand

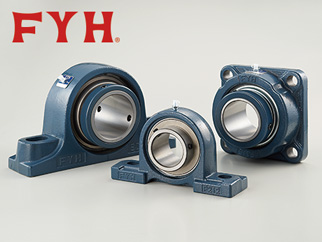

ベアリングユニット（ピローブロック等） A bearing unit consists of a sealed radial ball bearing in combination with a bearing housing, the substance of which can be selected from a variety of materials, such as cast iron and sheet steel. The contact surfaces of the bearing and housing are spherical and equipped with aligning properties. Bearing units in a broad range of variations are available with a wide range of housing materials. FYH、etc

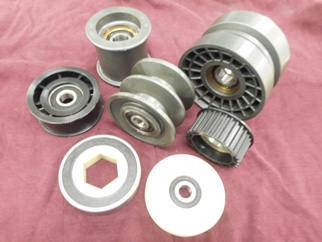

8）Custom-made special bearings

Custom-made special bearings Description Brand
別作・特殊ベアリング Custom-made special bearings are offered to customers having difficulty in using off-the-shelf bearings as they are. We prepare custom-made special bearings in cooperation with factories under a long-term business partnership by taking advantage of the specialty areas of the respective factories. Custom-made special bearings are used in the fields of architectural hardware and transport equipment. →Detailed information KSC、WTW、 etc

9）Others

Others Description Brand

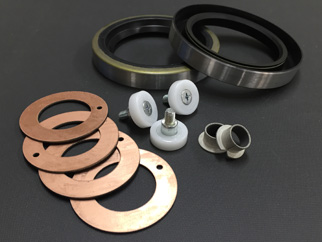

その他 Resin-made bearings as well as other types of bearings responding to a variety of environmental requirements (e.g., heat-resistant, chemical-resistant, and water-resistant requirements) are available. Oilless bushings are available as well for product downsizing, performance improvement, long-life extension, and laborsaving purposes. DAIDO、ELGES、MATEX、MTR、NDC、OILES、ORIGIN、SANKYO、TOK、UKB、etc

10）Direct-drive applications

Direct-drive applications Description Brand

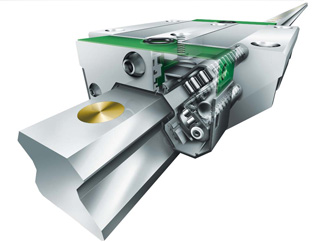

直動関係 Roller bearings, each of which incorporates a roller and balls as rolling elements, are available. Roller bearings used for equipment will make it possible to reduce the size and weight of the equipment while maintaining stable precision for a long period, thus greatly improving the reliability of the equipment. Roller bearings are widely used for industrial applications, such as machine tools, industrial robots, and metal processing machines. EASE、NSK、THK、TSUBAKI、etc

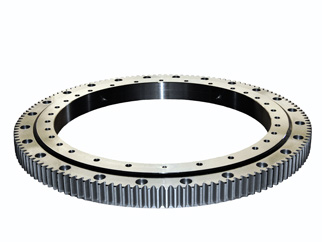

11）Swing bearings

Swing bearings Description
旋回ベアリング A single bearing can receive a thrust load, radial load, and the moment of force simultaneously, and either the outer ring or inner ring incorporates a gear, thus making it possible to simplify the structure of the rotating part. Both the outer ring and inner ring incorporate a through or tap hole each used to mount the bearing, which allows ease of mounting and dismounting.
　
  • Ball bearings
    • ボールベアリング
    • Description
    • Bearings of several types including those of automatic centering type as well as bearings of the most common deep groove type are available.
    • Brand
    • FAG、 JAF、KOYO、KSK、KSM、MBS、MRK、NACHI、NSK、NTN、WTW、etc
  • Roller bearings
    • Roller bearings
    • Description
    • Rollers of various types (e.g., those of conical, cylindrical, and spherical types) are available and selectable according to each purpose.
    • Brand
    • FAG、 KOYO、NACHI、NSK、NTN、etc
  • Miniature ball bearings
    • ミニチュア・ボールベアリング
    • Description
    • Miniature ball bearings are 1 mm to less than 10 mm in inner diameter and provided with a wide range of features, such as compactness, lightweight, high-speed performance, and low vibration.
    • Brand
    • EZO、ISC、KOYO、NMB、NSK、NTN、etc
  • Needle roller bearings
    • ニードルローラーベアリング
    • Description
    • Needle roller bearings, which are categorized into roller bearings, satisfy the requirements of compactness, lightweight, automation applications, resource-saving purposes, and maintenance-free performance. Needle roller bearings are used for a wide range of applications, including automobiles, motorcycles, machine tools, and construction equipment.
    • Brand
    • INA、KOYO、NSK、NTN、etc
  • Overseas-made bearings
    • 海外製ベアリング
    • Description
    • Not only bearings for general industrial use but also those for automotive use are available in a wide range from inexpensive ones to high-grade bearings. INA (German made), KBC (Korean made), Chinese made, etc.
    • Brand
    • FAG、 HCH(Chinese made)、INA、KBC(Korean made)、etc
  • Automotive bearings
    • 自動車ベアリング
    • Description
    • Special products in a wide variety are available (e.g., bearings for clutch release, steering, wheel, and tensioner applications), which are different from those for general industrial use. We have a system to support all types of customer needs.
    • Brand
    • FBJ、KOYO、MRK、MBS、NACHI、NSK、NTN、etc
  • Bearing units (e.g., pillow blocks)
    • ベアリングユニット（ピローブロック等）
    • Description
    • A bearing unit consists of a sealed radial ball bearing in combination with a bearing housing, the substance of which can be selected from a variety of materials, such as cast iron and sheet steel. The contact surfaces of the bearing and housing are spherical and equipped with aligning properties. Bearing units in a broad range of variations are available with a wide range of housing materials.
    • Brand
    • FSQ、 FYH、TOHO、etc
  • Custom-made special bearings
    • 別作・特殊ベアリング
    • 製品情報
    • Custom-made special bearings are offered to customers having difficulty in using off-the-shelf bearings as they are. We prepare custom-made special bearings in cooperation with factories under a long-term business partnership by taking advantage of the specialty areas of the respective factories. Custom-made special bearings are used in the fields of architectural hardware and transport equipment.→Detailed information
    • Brand
    • KSC、WTW、etc
  • Others
    • その他
    • Description
    • Resin-made bearings as well as other types of bearings responding to a variety of environmental requirements (e.g., heat-resistant, chemical-resistant, and water-resistant requirements) are available. Oilless bushings are available as well for product downsizing, performance improvement, long-life extension, and laborsaving purposes.
    • Brand
    • DAIDO、ELGES、MATEX、MTR、NDC、OILES、ORIGIN、SANKYO、TOK、UKB、etc
  • Direct-drive applications
    • 直動関係
    • Description
    • Roller bearings, each of which incorporates a roller and balls as rolling elements, are available. Roller bearings used for equipment will make it possible to reduce the size and weight of the equipment while maintaining stable precision for a long period, thus greatly improving the reliability of the equipment. Roller bearings are widely used for industrial applications, such as machine tools, industrial robots, and metal processing machines.
    • Brand
    • EASE、NSK、THK、TSUBAKI、etc
  • Swing bearings
    • 旋回ベアリング
    • Description
    • A single bearing can receive a thrust load, radial load, and the moment of force simultaneously, and either the outer ring or inner ring incorporates a gear, thus making it possible to simplify the structure of the rotating part. Both the outer ring and inner ring incorporate a through or tap hole each used to mount the bearing, which allows ease of mounting and dismounting.

How do you distinguish size of bearings easily?

Last two figures of a model number of a general bearing mean its internal diameter in accordance with a rule except that of miniature ball bearings(internal diameter is under 10mm) and tapered bore.
00 means 10mm, 01 means 12mm, 02 means 15mm, 03 means 17mm, 04 means 20mm.
When last two figures of a model's number are 04 or over, the number which the last two figures are multiplied by 5 mean the model's internal diameter.

For example,
6204→04(model's last two figures of number）×5＝20mm、6205→05（model's last two figures）×5＝25mm、・・・6210→10(model's last two figures）×5＝50mm.
Even if types of a bearing are different from each other, their internal diameter is the same length when last two figures of a number of the models are the same number.

For example,
6206、7006、1206、5306、NU206、30306、22206、51106、UCP206・・・
Last two figures of the above numbers of models are 06 and their internal diameters are 30mm(= 06 × 5).
